Tube fitting connector compression tube fittings double ferrules fittings

FOB Reference Price:Get Latest Price
  • 20 - 199 Pieces
    US $3.00
  • >=200 Pieces
    US $2.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
FD-LOK
Model Number:
Male Connector
Type:
Union
Material:
Stainless Steel, 304SS, 316SS, 316L, Duplex, Hastelloy, Inconel, Monel
Technics:
Forged
Connection:
Double ferrules
Shape:
Equal
Head Code:
Hexagon
Product name:
6000PSI Stainless Steel 316 Swagelok type Tube Connector
Certificate:
ISO 9001, ISO14001, ISO18001, CE, SGS
Size:
1/8"-1 1/2"
Ferrules:
Double Ferrules
Usage:
Connection
Thread:
BSPP BSPT NPT
Pressure:
6000psi
OEM:
Acccept
Application:
Natural Gas
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton or wooden case
Port
Ningbo / Shanghai
Product Description

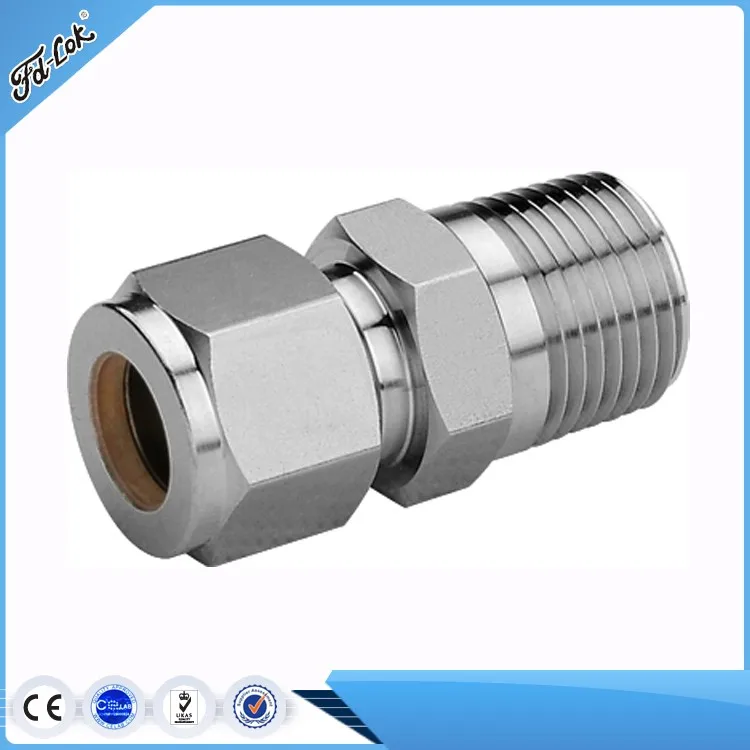

6000PSI Stainless Steel 316 Swagelok Type Tube Connector


Feature:

1. Working pressure: up to 6000 psi ( 41.4Mpa)

2.Working temperature:-325℉~800℉ (-198℃~426℃)

3.Size: 1/16" to 1 1/2" (Fractional Tube) or 2 to 38 mm (Metric Tube)

4.Diverse materials and configurations are avai.

5.Precision machined components ensure perfect deformation of the ferrules and tubing.

6.Hardened threads and smoothed surface finishes extend fitting life and prevent sticking of the matching threads.

7.Redius junction design with elbows provides smooth flow path.

8.Every fitting is stamped with size, material, and heat code

9.Fitting are easy to disconnect and retighten.



Specification of stainless steel ferrule fitting :

1.installed, remove convenient

2.Superior quality and competitive price

3.the professional manufacturer of the fittings

4.Widely used in various environment

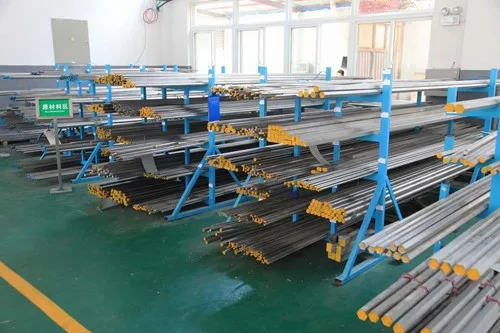

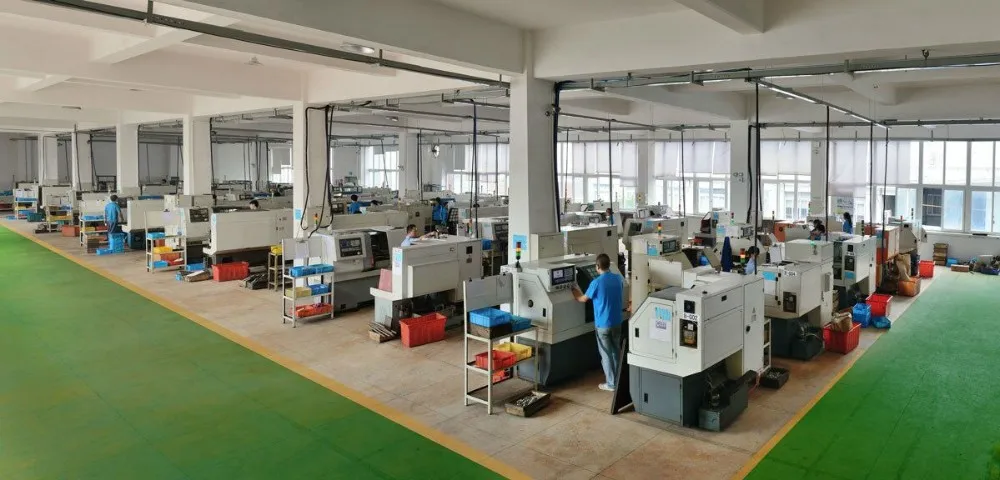

Our Company

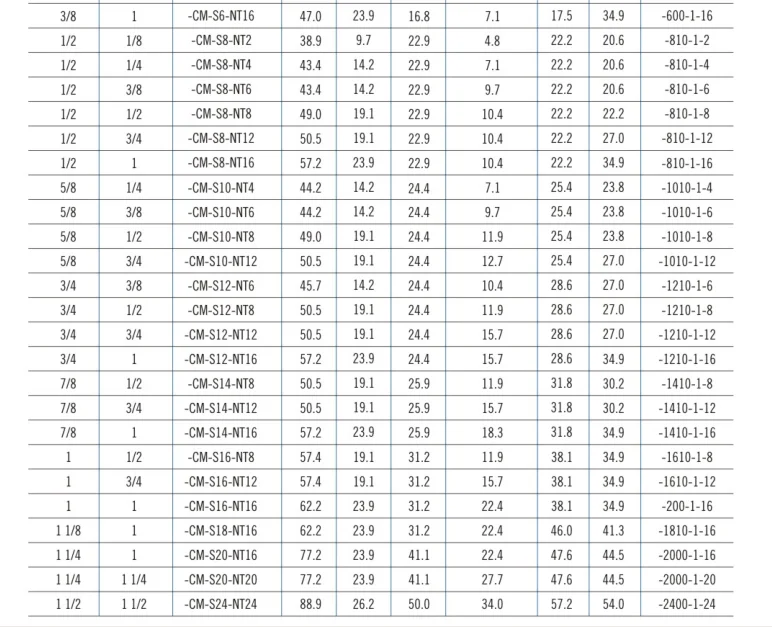

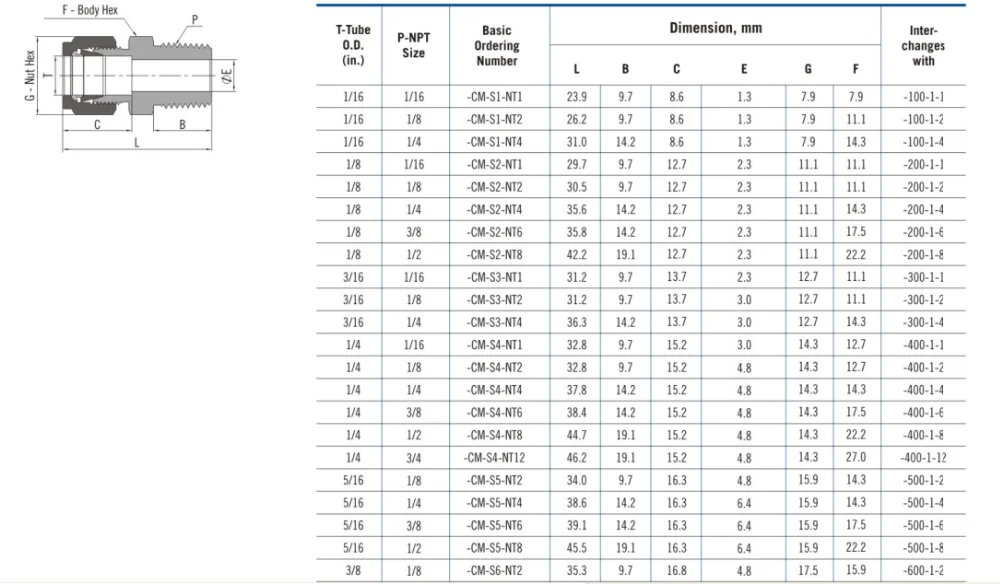

Detailed Images
Packing & Delivery

Packing Steps:

1, polybag

2, box

3, carton

4, second carton or wooden case


Delivery: By sea or air
